HYDRAULIC MOTORS

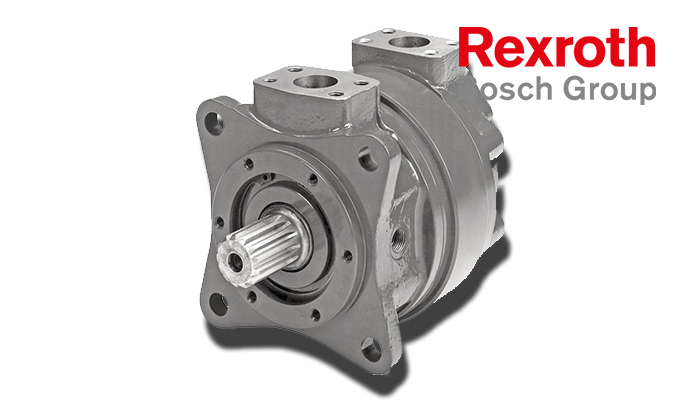

Six fixed displacement rotating groups ranging from 197 cm3/U to 606 cm3/U Double stack motors using two ports with displacement from 1049 cm3/U to 1213 cm3/U 4-port motors from 393 cm3/U to 1213 cm3/U capable of two-speed operation with external valving Starting and stall torques up to 94% of theoretical torque Maximum operating pressure: 207 bar – Code 61 310 bar – Code 62

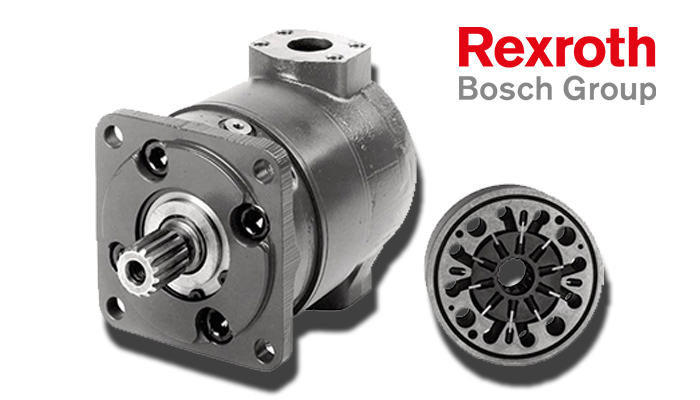

Eight fixed displacement rotating groups ranging from 98 cm3/U to 246 cm3/U Starting and stall torques up to 94% of theoretical torque Speed to 2000 rpm continuous Up to 112 kW Maximum operating pressure: 207 bar – Code 61

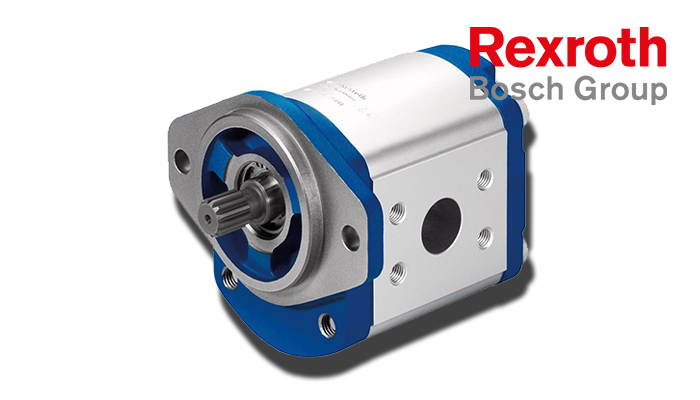

Platform G Fixed displacement Size 22 … 45 Continuous pressure 250 bar Intermittent pressure 280 bar

Platform N Fixed displacement Size 20 … 36 Continuous pressure up to 250 bar Intermittent pressure up to 280 bar

Platform F Fixed displacement Size 8 … 28 Continuous pressure up to 250 bar Intermittent pressure up to 280 bar

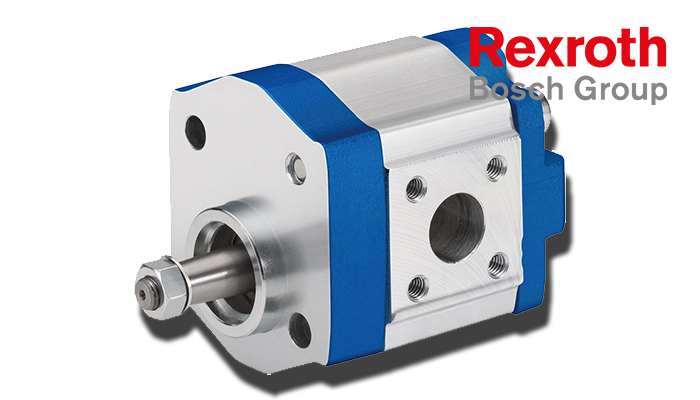

Platform B Fixed displacement Size 2.5 … 7.1 Continuous pressure up to 220 bar Intermittent pressure up to 250 bar

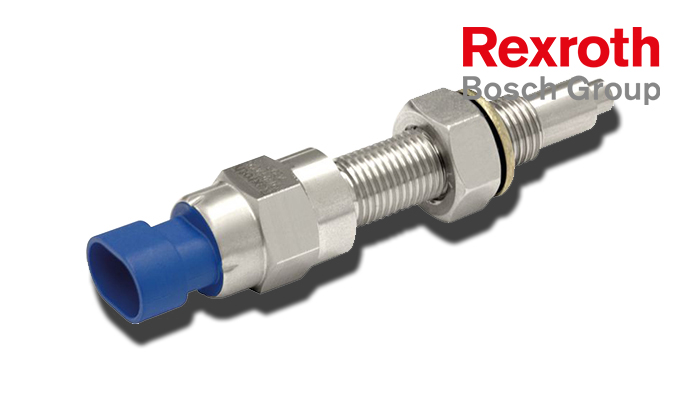

Switch for detecting the neutral position For installation in Rexroth axial piston motors A6VM series 65 and series 71 Protection class IP67 / IP69K

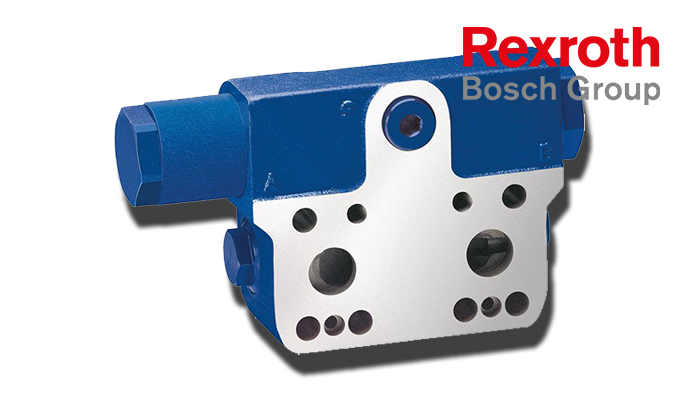

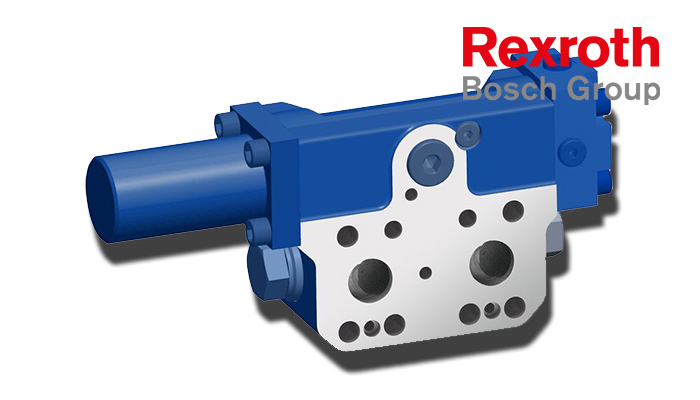

Double acting for travel drives and winch drives Size 20 … 32 Nominal pressure up to 450 bar Maximum pressure up 500 bar Direct attachment on Rexroth axial piston motors (A2FM / A2FE / A6VM series 63 / A6VE series 63)

Double acting for travel drives and winch drives Size 20 … 32 Nominal pressure up to 450 bar Maximum pressure up 500 bar Direct attachment on Rexroth axial piston motors (A2FM / A2FE / A6VM series 63 / A6VE series 63)

Reversible axial piston motor for fan drives Size 30 … 45 Nominal pressure 280 bar Maximum pressure 350 bar Open circuit

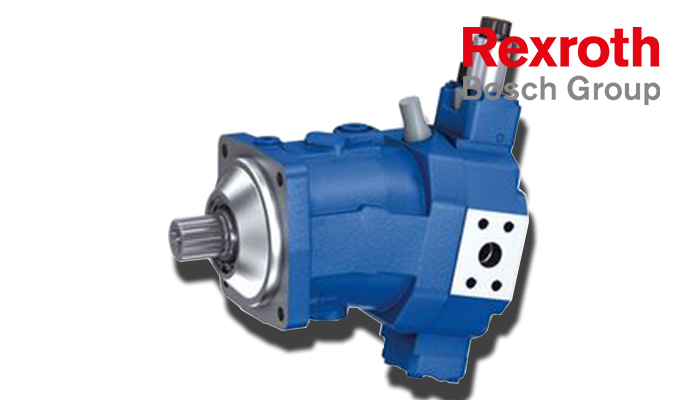

Plug-in medium pressure motor with two-point control Size 28 … 63 Nominal pressure 280 bar Maximum pressure 350 bar Open and closed circuit

Medium pressure motor with two-point control Size 28 … 85 Nominal pressure 280 bar Maximum pressure 350 bar Open and closed circuit

High pressure motor for integration in mechanical gearboxes Size 60 … 215 Nominal pressure 450 bar Maximum pressure 500 bar Open and closed circuit

High pressure motor for integration in mechanical gearboxes Size 28 … 250 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit

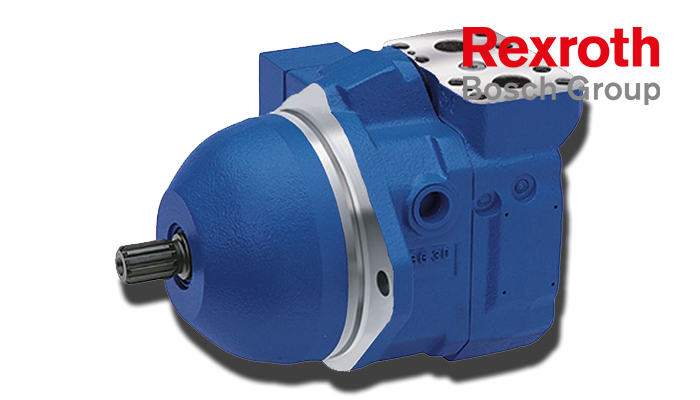

All-purpose high pressure motor Size 60 … 280 Nominal pressure 450 bar Maximum pressure 500 bar Open and closed circuit Metric version

All-purpose high pressure motor Size 60 … 280 Nominal pressure 450 bar Maximum pressure 500 bar Open and closed circuit SAE version (for the US market)

All-purpose high pressure motor Size 55 … 250 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit SAE version (for the US market)

All-purpose high pressure motor Size 28 … 1000 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit Metric version

Medium pressure motor for integration in mechanical gearboxes Size 10 … 63 Nominal pressure 280 bar Maximum pressure 350 bar Open and closed circuit

Medium pressure motor for standard applications Size 18 … 63 Nominal pressure 280 bar Maximum pressure 350 bar Open and closed circuit

High pressure motor for confined installation spaces Size 22 … 500 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit

Compact high pressure motor for integration in mechanical gearboxes Size 45 … 107 Nominal pressure up to 450 bar Maximum pressure up 500 bar Open and closed circuit

Compact high pressure motor with short installation length Size 45 … 107 Nominal pressure up to 450 bar Maximum pressure up 500 bar Open and closed circuit SAE version (for the US market)

Compact high pressure motor with short installation length Size 45 … 107 Nominal pressure up to 450 bar Maximum pressure up 500 bar Open and closed circuit Metric version

High pressure motor for integration in mechanical gearboxes Size 28 … 355 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit

All-purpose high pressure motor Size 10 … 250 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit SAE version (for the US market)

All-purpose high pressure motor Size 5 … 1000 Nominal pressure up to 400 bar Maximum pressure up 450 bar Open and closed circuit Metric version

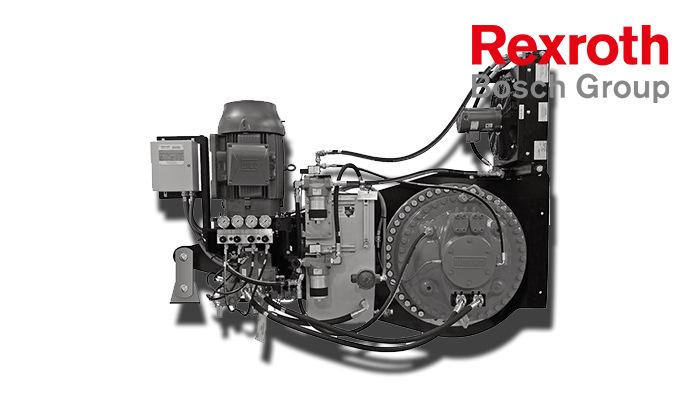

Torque: Up to 275231.04 Nm Speed: Up to 60 rpm Max. operating pressure: 349.98 bar Power: Up to 74.57 kW Ambient temperature -40 … +40.56 °C

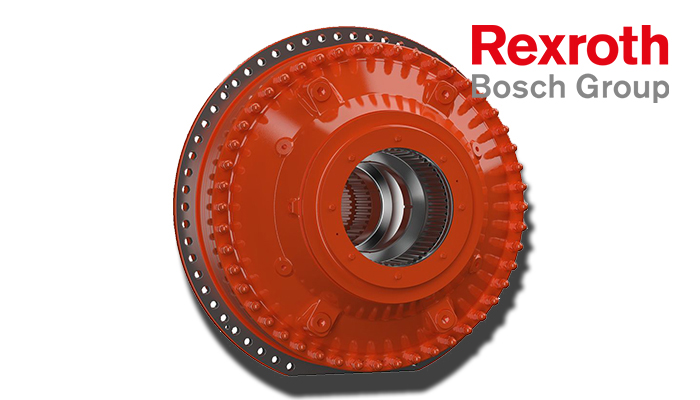

Size 03300 … 38000 Displacement 3325 … 38000 cm³/rev Specific torque 53 … 605 Nm/bar Nominal speed 25 … 100 rpm Maximum operating pressure 320 bar

Size 1000 … 6000 Displacement 63108 … 380178 cm³/rev Specific torque 1000 … 6000 Nm/bar Maximum operating pressure 350 bar

Size 240 … 1120 Displacement 15100 … 70400 cm³/rev Specific torque 240 … 1120 Nm/bar Maximum operating pressure 350 bar

Size 80 … 840 Displacement 5024 … 52800 cm³/rev Specific torque 80 … 840 Nm/bar Maximum operating pressure 350 bar

Size 7 … 210 Displacement 1256 … 13200 cm³/rev Specific torque 20 … 210 Nm/bar Maximum operating pressure 350 bar

Size 0010 … 0040 Displacement 508 … 2513 cm³/rev Specific torque 8 … 40 Nm/bar Nominal speed 260 … 350 rpm Maximum operating pressure 250 bar

Six fixed displacement rotating groups ranging from 197 cm3/U to 606 cm3/U Double stack motors using two ports with displacement from 1049 cm3/U to 1213 cm3/U 4-port motors from 393 cm3/U to 1213 cm3/U capable of two-speed operation with external valving Starting and stall torques up to 94% of theoretical torque Maximum operating pressure: 207 bar – Code 61 310 bar – Code 62
